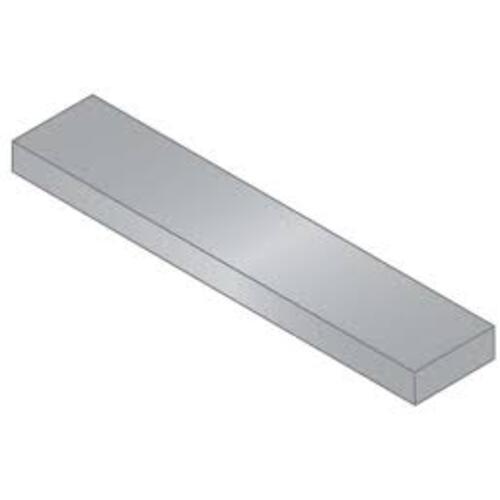

| Type | Oil Hardening | Material Grade | O1 |
| Length | 18″ | Square Tolerance | +/-0.001 |
| Width | 2″ | Thickness Tolerance | +/-0.001 |
| Thickness | 1/32″ | Width Tolerance | +0.005/-0.000 |
| Material | Tool Steel | Length Tolerance | +0.125/+0.250 |
Product Features
| Remarks | •Precision Ground 0-1 Gage Stock •O-1 Oil Hardening Ground Flat Stock O-1 Ground Flat Stock is an electric furnace melt oil-hardening tool steel supplied with a fully spheroidized structure. •A non-shrinking general purpose tool steel, it has excellent abrasion resistance, toughness and machinability characteristics. •HEAT TREATMENT: For sections smaller than 1/4″ heat to 1450° 1475° F and hold until heated through. •For larger sections, preheat to 1200°F, then raise to 1450° 1500°F hardening temperature, hold half an hour per inch of cross section. •Quench in oil at 125° 150°F and TEMPER IMMEDIATELY. •Tolerance Thickness .001″ Width .000 / .005″ | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.422
