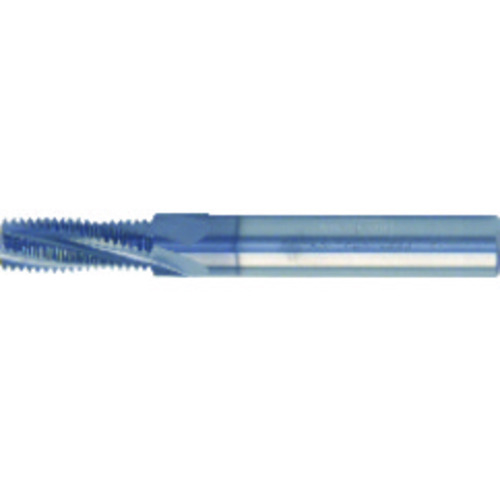

‎5900 5/16-24 SC THD MILL

Item # MT3098608

UNSPSC: 23291800

Brand: Morse Cutting Tools

MFG#: 98608

UPC #: 01023727 | 68612598608 | 686125986087

Additional Canadian Tariff of 25 %

Quantity Available

Virtual Catalog

Thread Size

5/16″

Coating

AlTiN

Threads per Inch (TPI)

Application

External Thread Milling

Thread Standard

Applicable Material

Connection Diameter Machine Side (DCONMS)

1/4″

Flute Helix Angle (FHA)

20 Degrees

Cutting Diameter (DC)

0.24″

Cutting Edge Material

Carbide

Overall Length (OAL)

3″

Usable Length (LU)

5/8″

Flute Count (NOF)

Series/List #

5900

Coolant Supply Property (CSP)

External

Body Material

Carbide

Shank Type

Round

Product Features

Remarks

Solid Carbide Thread Mills• Reduced Tool Inventory. One Thread Mill Can Produce internal & external threads. left hand & right hand threads, different thread diameters of the same pitch and through hole & blind hole threads.• Requires Less Power. Produce coarse pitches and large diameters on lower H.P. machines.• Tough Threading Applications. Thread harder, difficult-to-machine & gummy materials that cause problems for taps.• Helical Flutes for reduced cutting forces, improved thread qualtiy & increased tool life.• Precision Threading. Control pitch diameter precisely via programming. Precision thread depth control & positional accuracy. Produce 100% thread heights. Produce full threads to within one pitch of a shoulder or blind hole bottom.• Easily Removed if Broken. No need for EDM burn-out.• 10% Micrograin Carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life.• ALTiN - Alumimum Titanium Nitride is an excellent all-around coating that is especially recommended for high thermal stress applications including dry machining, abrasive materials and difficult-to-machine materials. Benefits include higher cutting speeds and longer tool life.

Country of Origin

USA

Shipping Info

LocalField10

Package Length

3.12500

Package Width

.37500

Package Height

.37500

Package Weight

0.07
