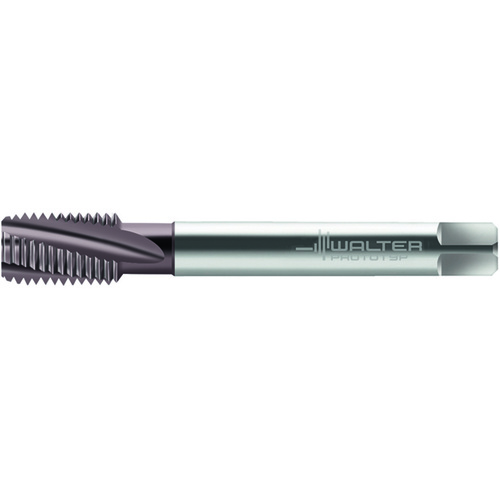

M14x1.5 6H 4 Flute HSS THL Spiral Flute Tap
21460T2-M14X1.5
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M14 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 1.5 mm | Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric | Standard | DIN 376 |
| Overall Length (OAL) | 100 mm | Flute Length | 42 mm |
| Thread Cutting Part Length (THL) | 15 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | CW|15 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 21460T2-M14X1.5 | Country of Origin | Germany |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.146
