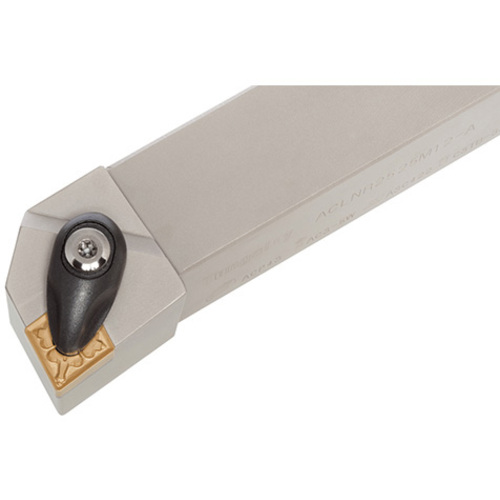

ACLNL2020K12-A
Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts

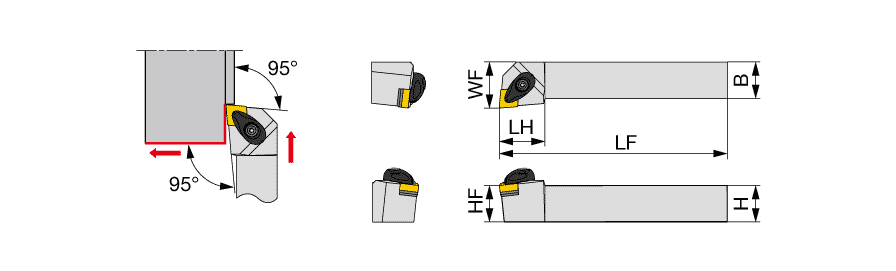

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | CNMG120408 |
| Overall Length (OAL) | 125 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 26 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.974
